Category: DVR 8 CHANNEL

DVR 8 CHANNEL

DVR CLOUD HYBRID 8 Channel ARVIO-HDVR0811

DVR CLOUD HYBRID 8 Channel ARVIO-HDVR0811

Support : Cloud P2P + DVR + NVR

DVR0811

Spesifikasi :
– DVR/NVR/HVR, Operating System: LINUX, Compression Mode: H.264
– Video Input/Output: BNC 8CH in, 1CH out; VGA 1CH out, HDMI(1080P)× 1
– Audio Input/Output: RCA 1CH in, 1CH out
– Realtime Video Recording:
CIF: 352×240 at 30 Fps(NTSC); 352×288 at 25 Fps(PAL)
D1: 720×480 at 120 Fps(NTSC); 704×576 at 100 Fps(PAL)
960H: 960×480 at 120 Fps (NTSC); 960×576 at 100 Fps (PAL)
– Playback: 960H x 2 CH
– Multi-channel playback simultaneously, voice intercom, remote control, screenshot, mobile view(iPhone, Android, Windows, Blackberry, Symbian, etc.)
– Backup Mode: network download, Flash stick, movable HDD, SATA HDD, DVD-RW
– iCloud Software, plug to play(P2P); Support IE, Firefox, Google Chrome, Mac OS, Safari, 28 kinds of operating languages
– Support ONVIF/DHCP/PPPOE/DNS/DDNS/NTP/RTSP/IP right management/IP search/network alarm center/WEB clients/standalone clients/SDK/3G/Wifi
– Support RS485, PTZ, RJ45 (10M/100M), 1 SATA port(Max 3TB), USB2.0
– Dimension: 300mm(L) x 235mm(W) x 45mm(H)
– Weight: 2.8kg
– Audio Input/Output: RCA 1CH in, 1CH out
– Alarm Input/Output: Alarm 4CH in, 1CH out

DVR 8 CHANNEL

DVR 8 CHANNEL

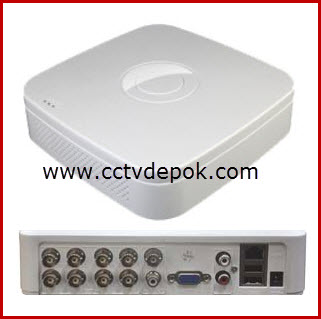

DVR 8 CHANNEL FULL D1 ARVIO-DVR0850FD1

ARVIO-DVR0850-FD1

Model No : ARVIO-DVR0850FD1

Fitur :
– 8-Channel H.264 Network Digital Video Recorder  (8CH ×D1)
– Video Compression: H.264; Video System: PAL/NTSC
– Video input/output:   BNC 8-channel Input  and 1-channel BNC Output and 1-channel VGA Output; VGA resolution: 1024×768,1280×1024
– Audio input/output:  RCA 2-channel input/ RCA 1-channel output
– Display resolution: D1 704 x 576/CIF 352×288 (PAL); D1 720 x 480/CIF 352×240 (NTSC)
– Display frame rate:  200fps(PAL);240fps (NTSC) (shared by 8 cameras)
– Recording resolution: D1 704×576 /CIF 352×288 (PAL); D1 720×480 /CIF 352×240 (NTSC)
– Recording frame rate:  D1@200fps/  CIF@200fps (PAL); D1@240fps/CIF@240fps(NTSC)
– Playback resolution: 4x D1
– RJ-45 Ethernet connector, Static, Dynamic IP and DDNS , Support Internet Explorer and special client software, Support remote view by Mobilephone
–  2 × USB, 1× USB Mouse
– Backup: USB2.0 and Network, Multi-language menu
– Hexaplex operation simultaneously: Preview, recording, playback, and network live, backup, playback
– Support 1 SATA 2.5/3.5” Hard Disk inferface (4TB in total)
– Standard Color : White
– Dimension:  206*206*51 (LxWxH)  Weight: 3.0Kg


DVR 8 CHANNEL ARVIO-DVR0820

ARVIO-DVR0820

Fitur :
– 8-Channel H.264 Network Digital Video Recorder (2CH × D1 + 6CH × CIF)
– Video Compression: H.264; Video System: PAL/NTSC
– Video input/output: BNC 8-channel Input and 1-channel BNC Output and 1-channel VGA Output; VGA Resolution: 1024×768,1280×1024
– Audio input/output: RCA 1-channel input/ RCA 1-channel output
– Display resolution: D1 704 x 576/ CIF 352×288 (PAL); D1 720 x 480 /CIF 352×240(NTSC)
– Display frame rate: 200fps(PAL);240fps (NTSC) (shared by 8 cameras)
– Recording resolution: D1 704×576 /CIF 352×288 (PAL); D1 704×480 /CIF 352×240 (NTSC)
– Recording frame rate: D1@50fps/CIF@200fps(PAL); D1@60fps/CIF@240fps((NTSC)◇Playback resolution: 1 x D1
– RJ-45 Ethernet connector; Support Static, Dynamic IP and Support TCP/IP, PPPOE, DHCP, DNS,DDNS, SNTP, UPNP
– Support Internet Explorer, Mobile phone and special client software
– With RS485 x 1, 2 × USB, 1 × IR Controller , 1 × USB2.0 mouse
– Support PELCO-P&PELCO-D PTZ control
– Support 1 SATA Hard Disk inferface (2TB in total)
– Multi-language OSD
– Dimension: 354x245x45mm (LxWxH) Weight:4.0Kg
