DVR 4 CHANNEL

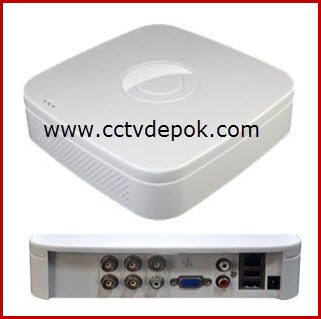

DVR 4 CHANNEL 960H FULL D1 ARVIO-DVR0480
Model No : ARVIO-DVR0480
Fitur :
– H264 Compression Format
– Resolution 960H (higher than D1)
– 4 BNC Input (1.0 Vp-p,75Ω), 1 BNC Output + 1 VGA Output (No HDMI Port)
– Audio ADPCM Compression, 2 Audio Input RCA, 1 Audio Output RCA
– No Alarm I/O, No PTZ I/O
– TV Out BNC (1.0 Vp-p,75Ω), Resolution: PAL:704×576, NTSC: 720×480
– VGA Out Resolution: 800×600, 1024×768, 1280×1024,1920×1080
– Display Split 1 or 4 Ch
– Privacy Masking 4 Rectangular Zones (each camera)
– Resolution PAL: 960H(960×576), D1(704×576), CIF(352×288) NTSC: 960H(960×480) D1(720×480), CIF(352×240)
– Video Quality Best/Fine/Normal
– Recording Rate PAL : 960H@100fps, D1@100fps, CIF@100fps / NTSC: 960H@120fps, D1@120fps, CIF@120fps
– Recording Mode Manual\Timer\Motion Detection\Sensor
– Local Sync Playback 4 Ch / 1 Ch
– Remote Sync Playback 4 Ch / 1 Ch
– Search Recording mode ALL, Channel, Manual, Time, Date, Motion Detection, Sensor
– Backup Mode USB Device/Network(Support back up to AVI directly)
– Network Support 1 RJ45 10M/100M Adaptive Ethernet Interface
– HTTP, IPv4, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS, Browser support IE6-10, Firefox, Chrome
– SmartPhone Support iPhone, ipad, Windows Phone, Android, Blackberry, Symbian
– Harddisk Support : 1 SATA Interface up to 4 TB
– USB 2.0 Support
– Power 12 V 5 A DC
– Weight : 2 kg (without HDD)
DVR 4 Channel FULL D1 ARVIO-DVR0440 with HDMI Output
Model No : ARVIO-DVR0440
Fitur :
– H.264 standard compression format with efficient processing and clear image
– 4 Channel FULL D1 Real Time
– Cloud Technology : Support P2P Cloud Vision function. One step to link internet.
– User Management : YES
– OS : Embedded Linux
– VGA Display : Support 1280×1024, 1920×1080
– Video I/O : 4 CH BNC Input, 1 CH Video Output, 1 CH VGA Output, HDMI 1080P support
– Audio : 4 CH RCA Input, 1 CH RCA Output
– Resolution : support D1, CIF
– Display Split : 1/4
– Recording & Playback : 1 or 4 CH at the same time
– Recording : Manual, Timing, Motion Detect, Video Blind
– Search Record : Time/Date, Motion Detect
– PTZ : 1 * RS485 Support Pelco-D, Pelco-P, Samsung + other main protocol
– USB : 2 * USB 2.0
– Mobile Phone : Support Window Mobile, iPhone, iPad, Android, Blackberry, Symbian and 3G
– HDD Capacity : 1 port SATA upto 4TB Interface
– Network : 1 * RJ45 Ethernet
– DDNS : Support Custom DDNS Domain name
– Upgrade : USB Disk, Network
– Backup : USB Disk, Harddisk, Network
– Special : User can change Boot LOGO
– Power Supply : min 12 V 3 A (1 HDD), 12 V 4 A (2 HDD)
– Gross Weight : 4 kg
DVR 4 Channel 960H FULL D1 ARVIO-DVR0481 with HDMI Output
Model No : ARVIO-DVR0481
Fitur :
– H264 Compression Format
– Resolution 960H (higher than D1)
– 4 BNC Input (1.0 Vp-p,75Ω), 1 BNC Output + 1 VGA Output + 1 HDMI Output
– Audio ADPCM Compression, 2 Audio Input RCA, 1 Audio Output RCA
– Alarm I/O, PTZ I/O
– TV Out BNC (1.0 Vp-p,75Ω), Resolution: PAL:704×576, NTSC: 720×480
– VGA Out Resolution: 800×600, 1024×768, 1280×1024,1920×1080
– Display Split 1 or 4 Ch
– Privacy Masking 4 Rectangular Zones (each camera)
– Resolution PAL: 960H(960×576), D1(704×576), CIF(352×288) NTSC: 960H(960×480) D1(720×480), CIF(352×240)
– Video Quality Best/Fine/Normal
– Recording Rate PAL : 960H@100fps, D1@100fps, CIF@100fps / NTSC: 960H@120fps, D1@120fps, CIF@120fps
– Recording Mode Manual\Timer\Motion Detection\Sensor
– Local Sync Playback 4 Ch / 1 Ch
– Remote Sync Playback 4 Ch / 1 Ch
– Search Recording mode ALL, Channel, Manual, Time, Date, Motion Detection, Sensor
– Backup Mode USB Device/Network(Support back up to AVI directly)
– Network Support 1 RJ45 10M/100M Adaptive Ethernet Interface
– HTTP, IPv4, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS, Browser support IE6-10, Firefox, Chrome
– SmartPhone Support iPhone, ipad, Windows Phone, Android, Blackberry, Symbian
– Harddisk Support : 1 SATA Interface up to 4 TB
– USB 2.0 Support
– Power 12 V 5 A DC
– Weight : 2 kg (without HDD)
